Common Properties of Electrothermal Alloy Product
/
Constantan
1/1
Number of views:
1151

Constantan

Constantan has low resistance coefficient, can be used in a wide range of temperatures, and has good heat resistance, strong corrosion resistance, good processability and brazing.
Number of views:
1151
Category
Common Properties of Electrothermal Alloy Product
Quantity
-
+
1
Main performance
Wire diameter meter resistance cross reference table

Constantan has low resistance coefficient, can be used in a wide range of temperatures, and has good heat resistance, strong corrosion resistance, good processability and brazing.

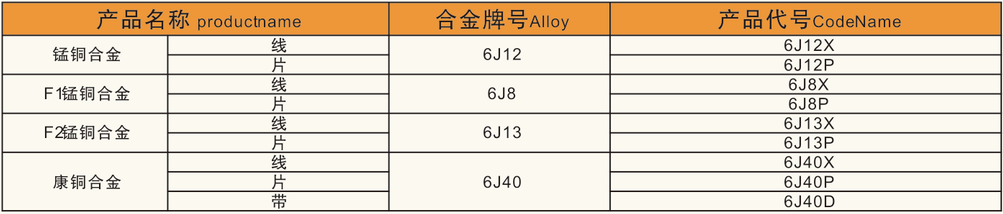

The product name, alloy brand and product code are shown in the table below:



pic



Chemical composition of alloy



pic

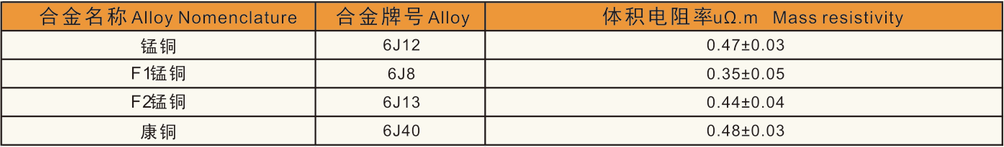

resistivity

The volume resistivity of alloy wire, sheet and strip shall comply with the provisions in the table below



pic



Average resistance temperature coefficient

The average resistance temperature coefficient of constantan alloy shall comply with the provisions in the table below



pic

Keyword:
constantan
the
resistance
alloy
and
of
in
table
below
coefficient
We could not find any corresponding parameters, please add them to the properties table

pic

pic

注：线材的圆度应不超过允许差的一半



pic



带材厚度及宽度表



pic

注：带材有效截面积是把宽度与厚度之积乘以如下系数求得。宽度≥10mm时，乘以0.98，宽度＜10mm时，乘以0.94，带材边的镰刀弯曲度每米长应大于10mm，并限于单向。



·每米电阻值

线材每米电阻值应符合表5电阻值允许差的规定，同一轴（或卷）线材的每米电阻值的均匀性应不超过5%。



抗拉强度及伸长率及对铜热电动势率表



pic

注：线材的伸长率不小于上表的规定。         注：各种合金的对铜平均热电动势应不大于上表的规定。

厚度大于0.5mm的片，带材的伸长率应不小于15%。

康铜合金线，带材的抗拉强度应不小于390MPa（N/MM2）。
